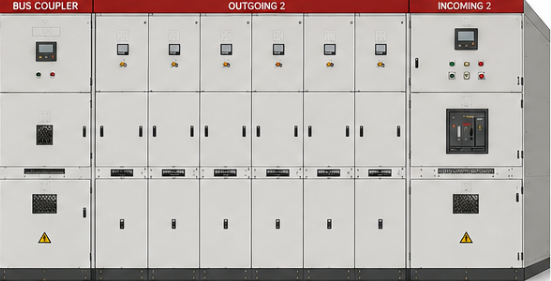

A properly‑selected distribution cabinet ensures safe power distribution, stable operation and convenient maintenance for industrial, commercial and solar‑powered projects. Wrong selection will cause overheating, frequent tripping or even safety risks. Below are core factors you need to evaluate before purchasing.
1. Confirm Electrical Parameters
Start with your actual power system data, not only cabinet appearance or price.
- Rated Voltage & Frequency: Match local grid (common 400V 50/60Hz three‑phase, 230V single‑phase).
- Rated Main Current: Calculate existing load plus 20‑30% margin for future expansion. Avoid undersizing which leads to overheating.
- Short‑circuit withstand capacity: Must satisfy the fault‑current level at installation site (typical 25kA‑50kA for most 400V industrial sites). Both busbar and main breakers shall meet this requirementAlibaba.co....
- Outgoing circuits: Confirm quantity and current rating of feeders, motor loops or solar‑inverter branches.
- Protection components: Select MCCB, ACB or MCB with proper trip units. Add RCD for shock protection and SPD for surge protection if neededAlibaba.co....
2. Installation Environment & IP Rating
IP rating defines protection against dust and water, which is critical for cabinet service life.
- Indoor clean electrical room: IP30‑IP42
- Workshop, parking lot, humid indoor site: IP54
- Outdoor, solar farm, coastal area: IP65 or higher
For coastal / corrosive atmosphere, choose 304 / 316L stainless‑steel enclosure even with high IP gradeAlibaba.co....
Also check ambient temperature, humidity, dust and chemical vapors for special‑site adaptation.
3. Cabinet Structure & Mechanical Design
- Mounting type: Floor‑standing for main power distribution; wall‑mounted for small‑sub‑distribution.
- Material: Galvanized steel for general use; stainless steel for corrosion‑prone sites.
- Internal separation form (per IEC 61439): Form 2‑4 for safety isolation between busbars and functional units, required for industrial projects.
- Access & cabling: Confirm front‑only access or front‑rear access; top / bottom cable entry, enough wiring space for cable bending radius and heat dissipation.
- Expandability: Pre‑reserve spare compartments for future equipment upgrade.
4. Compliance & Certification
Prioritize assemblies complying with IEC 61439‑1/2, the international standard for low‑voltage switchgear assemblies.
- Request type‑test reports for tender or project bidding.
- Meet local market marks: CE, UKCA or other regional certifications as per destination‑country requirements.
- Verify component authenticity and complete documentation: single‑line diagram, wiring drawing, test certificates.
5. Function & Monitoring Requirements
- Basic power distribution only: Standard cabinet with breakers.
- Smart‑management demand: Integrate energy meters, current‑voltage monitoring, IoT communication modules for remote data reading and alarm notification.
- Special‑load scenarios: Add power‑factor correction capacitor banks or harmonic filters for VFD, motor‑rich loads.
6. After‑sales & Supplier Support
- Confirm warranty period, spare‑part availability and technical‑drawing supply for project approval.
- Check supplier’s capability for custom layout, modification and on‑site technical guidance.
Quick Checklist for Buyers
- Rated voltage, main current & short‑circuit withstand value
- Indoor / outdoor, IP rating & enclosure material
- Number & rating of outgoing circuits
- Protection, metering and monitoring functions
- IEC 61439 compliance and required certifications
- Space for future expansion
- Drawings, test reports and after‑sales terms
Final Tip: Do not select distribution cabinets only by price. Mismatched electrical rating or insufficient enclosure protection will generate much higher maintenance and replacement cost in later operation.
